| TC-2000
Standard 15 AMP Temperature Control Systems |
The ITC's TC-2000 Main Frame and associated components are ruggedly
reliable, easy to use and maintain. The modular designs make them
highly adaptable in ever changing manufacturing environments. Affordability,
superior features and a 2 year limited warranty results in a quick
payback, improved molding cycles, less down time, reduced operating
costs and an improved bottom line.
|
 |

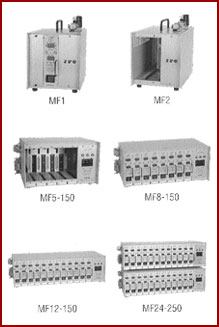

Standard
15 AMP Main Frame |
Portable
Floor Stands |
| MF1 |
1-Zone |
PFS-1 |
| MF2 |
2-Zone |
PFS-1 |
| MF50-150 |
5-Zone
w/ 50 amp breaker |
PFS-5 |
| MF8-150 |
8-Zone
w/ 50 amp breaker |
PFS-812 |
| MF12-150 |
12-Zone
w/ 50 amp breaker |
PFS-812 |
| MF16-250 |
16-Zone
w/(2) 50 amp breaker |
PFS-812 |
| MF16-170 |
16-Zone
w/ 70 amp breaker |
PFS-812 |
| MF20-250 |
20-Zone
w/(2) 50 amp breaker |
PFS-812 |
| MF20-170 |
20-Zone
w/ 70 amp breaker |
PFS-812 |
| MF24-250 |
24-Zone
w/(2) 50 amp breaker |
PFS-812 |
| MF24-170 |
24-Zone
w/ 70 amp breaker |
PFS-812 |
| MF36-350 |
36-Zone
w/(3) 50 amp breaker |
PFS-812 |
Manufactured of heavy gage welded aluminum to withstand the rigors
of industrial use.
Unless otherwise specified all main frames are 240v3-phase except
MF1 & MF2 which are 240v single phase.
All components are neatly contained within the main frame.
Special or Larger Control Systems are available upon request.
Stacks of 2 or more frames are rigidly fastened together into a single
prewired unit. |
Manufactured of heavy steel tubing.
Provided with standard casters.
Stands are shipped un-assembled. |
|
Transformer
Packages |
 |
Mold
Cables
|
Step-down
480v to 240v 3-phase |
Power |
Length |
Thermocouple |
| TP-6-5 |
6
kva with 5 zone stand |
PWC5-10 |
10
FT. |
THC5-10 |
| TP-9-8 |
9
kva with 8 zone stand |
PWC5-20 |
20
FT. |
THC5-20 |
| TP-15-8 |
15
kva with 8 zone stand |
PWC8-10 |
10
FT. |
THC8-10 |
| TP-15-12 |
15
kva with 12 zone stand |
PWC8-20 |
20
FT. |
THC8-20 |
| TP-30-8 |
30
kva with 8 zone stand |
PWC12-10 |
10
FT. |
THC12-10 |
| TP-30-12 |
30
kva with 12 zone stand |
PWC12-20 |
20
FT. |
THC12-20 |
| TP-45-12 |
45
kva with 12 zone stand |
Custom lengths and configurations available upon request. |
| |
Pre-wired
and assembled - includes
Transformer, Stand with casters, 10 ft. AC input power cable (no connector)
and disconnect fuse switch. |
|
Mold
Connectors |
 |
Power |
Zone |
Thermocouple |
| MC-5 |
5 |
MTC-5 |
| MPC-8 |
8 |
MTC-8 |
| MPC-12 |
12 |
MTC-12 |
| |
| |
| Connector
Kits |
|
| MEK-5TC |
Mold
Cable End Kit, 5 Zone, Thermocouple (Female) |
| MEK-8TC |
Mold
Cable End Kit, 8 Zone, Thermocouple (Female) |
| MEK-12TC |
Mold
Cable End Kit, 12 Zone, Thermocouple (Female) |
| MEK-PR |
Mold
Cable End Kit, 5, 8 & 12 Zones, Power (Female) |
| FEK-PR |
Frame
Cable End Kit, 5, 8 & 12 Zones, Power (Male) |
| FEK-TC |
Frame
Cable End Kit, 5, 8 & 12 Zones, Thermocouple (Female) |
| FCK-PR |
Main
Frame Power Connector, 5, 8 & 12 Zones (Female) |
| FCK-TC |
Main
Frame Thermocouple Connector, 5, 8 & 12 Zones (Male) |
| MF-EC |
Card
Edge Connector Kit for All Main Frames |
| MF-ECC |
Card
Edge Connector Contact Kit for All Main Frames |
| MF-CG |
Card
Guide for All Main Frames |
| ABC-15 |
Replacement
Module Fuse |
| |
|
| 1
& 2 Zone Connectors |
Main
Frame Harnesses |
| 1Z-FC |
1
& 2 Zone Frame Connector (Female) |
Power |
Zones |
Thermocouple |
| 1Z-MC |
1
& 2 Zone Mold Connector (Male) |
MF-PH5 |
5 |
MF-TH5 |
| 1Z-ME |
1
& 2 Zone Male Cable End |
MF-PH5 |
8 |
MF-TH8 |
| 1Z-ME90 |
1
& 2 Zone Male Cable End - 90° |
MF-PH5 |
12 |
MF-TH12 |
| 1Z-MEL |
1
& 2 Zone Male Cable End with Latch |
|
| 1Z-FE |
1
& 2 Zone Female Cable End |
| |
 |
| Mold
Wiring Junction Box |
|
Main
Frame Blank Panel |
|
Part
Number |
Zone |
 |
MFBP |
Fits
all 15& 30 amp main frames |
MJB-5 |
5 |
- Main Frames,
temperature control modules, cables and other components are all
sold separately.
- Please Specify
voltage and current requirements when ordering.
- ITC will
gladly modify standard main frames to accommodate special cables
and connectors.
- All standard
TC-2000 components are "G" series compatible.
|
MJB-8 |
8 |
MJB-12 |
12 |
Connectors must be ordered separately. |
| 1
& 2 Zone Cables |
PTC1-10 |
10
ft. Long |
|
PTC1-10 |
20
ft. Long |
Custom
lengths and configurations available upon request. |
|
