Magnapak Series

  • Rated for 1/4 to 1 HP
  • One piece construction -- motor, controller and operator controls all assembled as one easy to install unit
  • On/Off switch, speed potentiometer, and line fuse mounted on operator's control panel
  • 150% maximum torque
  • ± 1% speed regulation
  • 90:1 full torque speed range
  • Permanent magnet motors
  • 120 or 240 VAC models with broad input voltage range
  • C-Face motor mount
  • Continuous duty rating
  • Totally enclosed, non-ventilated (TENV) and (TEFC) Totally enclosed, fan-cooled versions
  • Adjustments for maximum speed, IR compensation, and torque limit
  • Easy installation with no wiring between controller and motor
  • Factory selected matched components for best performance
  • inexpensive installation, just bolt motor in place and wire to AC line



Continuous Duty HP at Set Speed (RPM)
1750 1175 875 590 100
0.250 0.167 0.125 0.084 0.014
0.333 0.222 0.167 0.111 0.019
0.500 0.333 0.250 0.167 0.028
0.750 0.500 0.375 0.250 0.042
0.750 0.500 0.375 0.250 0.042
1.000 0.667 0.500 0.333 0.057



Selection
Description Part Number
Non-Reversing With Operator Controls
1/4 HP, 120 VAC (TENV) 301-FMI
1/3 HP, 120 VAC (TENV) 302-FMI
1/2 HP, 120 VAC (TEFC) 303-FM1
3/4 HP, 120 VAC (TEFC) 304-FM1
3/4 HP, 240 VAC (TEFC) 311-FM1
1 HP, 240 VAC (TEFC) 312-FM1
Reversing with Braking and Operator Controls
1/4 HP, 120 VAC (TENV) 301-FM2
1/3 HP, 120 VAC (TENV) 302-FM2
1/2 HP, 120 VAC (TEFC) 303-FM2
3/4 HP, 120 VAC (TEFC) 304-FM2
3/4 HP, 240 VAC (TEFC) 311-FM2
1 HP, 240 VAC (TEFC) 312-FM2



Magnapak part numbering system
Ex: 301CM0-LD
First 3 digits calls out the HP and voltage

4th letter calls out base option
F=base, C=no base

5th letter is a constant
6th digit calls out control options
0=no controls, 1=with controls, 2=reversing and braking option
7th letter calls out power cord options
L=with cord, (omit letter if no cord required)
8th letter calls out control box position
D=control box on left, (omit letter if control box on right)







Magnapak Image


Maximum
HP 		Input
Voltage 		Motor
Enclosure 		Output
Torque
(in-lb)
1/4 120 TENV 9
1/3 120 TENV 12
1/2 120 TEFC 18
3/4 120 TEFC 27
3/4 240 TEFC 27
1 240 TEFC 36

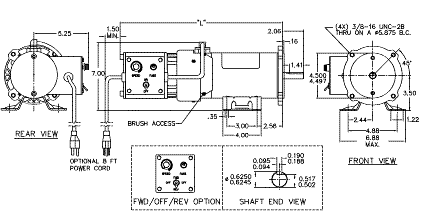

Magnapak 56C TEFC Dimensions

Magnapak 56C TEFC Dimensions Diagram

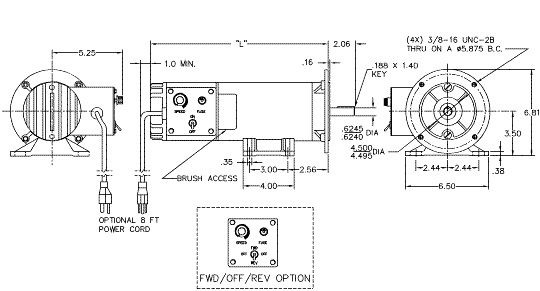

Magnapak 56C TENV Dimensions

Magnapak 56C TENV Dimensions Diagram
