Permanent Magnet DC Motor 137 Series

Our Industrial Continuous Duty DC Motors are designed for heavier industrial applications.

Industrial Standard Nema Frame Sizes
Continuous Duty
SCR Rated
Class H insulation
40 Degree C Ambient
Ball Bearings
Removable Base*
UL, CSA, and CE Rated
Brushes are spare (2 per motor), consult factory

*If base removed, bolt holes must be plugged in order to maintain NEMA totally enclosed standards. If bolts are used without base, use 1/4" thick washer to prevent interference with motor rotation.

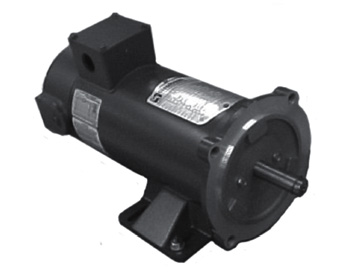

137 Series Image

Selection
HP	MODEL NUMBER	RPM	DC VOLTAGE	FL AMPS	FRAME	ENCLOSURE	MOUNTING	SHIPPING WT IN LBS	TOTAL LENGTH
1/4	13701101	1725	90	2.9	56C	TENV	NONE	17	9.33
1/3	13731503	1725	90	3.5	56C	TENV	REMOVABLE RIGID	20	10.14
1/3	13703203	1725	180	1.9	56C	TENV	NONE	19	10.78
1/2	13731504	1725	90	5.5	56C	TENV	REMOVABLE RIGID	30	13.14
1/2	13731534	1725	90	5.4	56C	TENV	REMOVABLE RIGID	24	12.65
1/2	13703201	1725	180	2.8	56C	TENV	NONE	30	13.14
1/2	13731514	1725	180	2.6	56C	TEFC	REMOVABLE RIGID	23	12.65
3/4	13731535	1725	90	8	56C	TEFC	REMOVABLE RIGID	30	14.65
3/4	13731515	1725	180	4	56C	TEFC	REMOVABLE RIGID	32	14.65
1	13731536	1725	90	10	56C	TEFC	REMOVABLE RIGID	36	16.67
1	13731516	1725	180	5	56C	TEFC	REMOVABLE RIGID	37	16.67
1 1/2	13731517	1725	180	8	143TC/145TC	TEFC	REMOVABLE RIGID	76	17.93
2	13731518	1725	180	10.9	143TC/145TC	TEFC	REMOVABLE RIGID	84	18.93
3	13731519	1725	180	15	143TC/145TC	TEFC	REMOVABLE RIGID	106	21.93
