Permanent Magnet DC Motor 600CH Series

Our SCR rated DC Motors are rugged, consistently reliable and efficient. They are designed for use with our own and other SCR controls. These motors provide economical solutions to a broad range of industrial and commercial applications.

NEMA 56C
Continuous Duty
Constant Torque
Class F insulation
40 Degree C Ambient
Ball Bearings
Removable Base
TENV and TEFC Designs
File No. E 50504
File No. LR87989

600CH Series Product Image

Selection
HP	Model Number	RPM	DC Voltage	FL Amps	Torque (lb-in)	Frame	Enclosure	Shipping Weight (Lbs)
1/4	S600CH	1750	90	2.9	9	56C	TENV	20
1/3	S601CH	1750	90	3.7	12	56C	TEFC	20
1/2	S602CH	1750	90	5.4	18	56C	TENV	23
1/2	S604CH	1750	90	5.4	18	56C	TEFC	23
3/4	S608CH	1750	90	7.9	27	56C	TEFC	29
1	S609CH	1750	90	10.4	36	56C	TEFC	32
1.5	S610CH	1750	90	15.6	54	145TC	TEFC	48
2	S611CH	1750	90	20.2	72	145TC	TEFC	53
1/4	S625CH	1750	180	1.5	9	56C	TEFC	20
1/3	S626CH	1750	180	1.9	12	56C	TEFC	20
1/2	S629CH	1750	180	2.7	18	56C	TEFC	23
3/4	S633CH	1750	180	4.0	27	56C	TEFC	29
1	S634CH	1750	180	5.2	36	56C	TEFC	32
1.5	S635CH	1750	180	7.8	54	145TC	TEFC	43
1.5	S636CH	1750	180	7.8	54	145TC	TEFC	45
2	S637CH	1750	180	10.1	72	145TC	TEFC	53
3	S3280CH	1750	180	15.3	108	145TC	TEFC	71

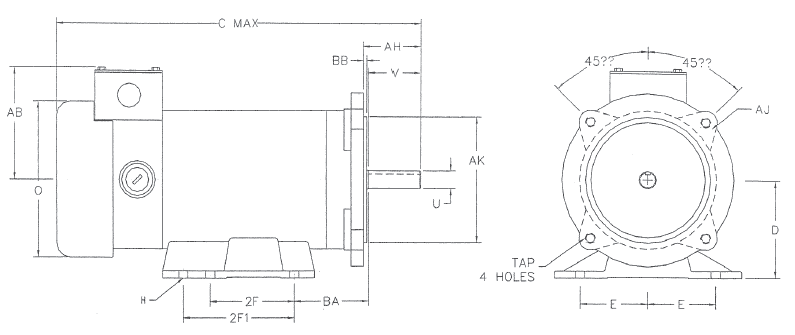

600CH Series Dimensions
