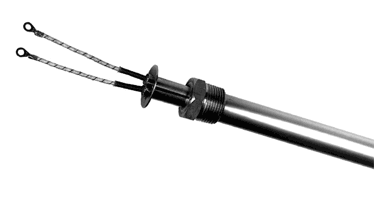

Watt-Flex® Replaceable Immersion Heaters


  • Stainless steel sheath accommodates standard diameter flanged Watt- Flex Cartridge Heaters.
  • Easily replaced without draining the tank or vat. Watt-Flex heater contracts when de-energized for easy removal.
  • Clean and safe. Heater never comes in contact with contents of tank.
 Image 1

CONSTRUCTION

    Stainless steel sheath with a welded end cap and NPT fitting which screws into and becomes a permanent part of the tank to be heated.   Image 3

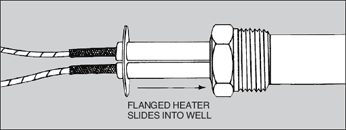

 Flanged Watt-Flex heater is secured to NPT fitting with two screws. To replace the heater, simply remove the screws and slide the de-energized heater out.
Image 2



SPECIFICATIONS


IMMERSION HEATER CARTRIDGE HEATER
Sheath O.D. NPT Fitting Diameter Length(Min.-Max.)
5/8"
3/4"
1/2"
5" - 45"
7/8"
1"
3/4"
8" - 72"



NOTE: Both Watt-Flex Immersion Heaters and Cartridge Heaters are manufactured to customer specified lengths.
